钢丝绳芯输送带

Steel Cord Conveyor Belt

特点：拉伸强度大，寿命长，使用伸长率小，成槽性

好，耐曲挠性好，适用于长距离、大运量、高速度物料

输送。

用途：可广泛用于煤炭、矿山、港口、冶金、电力、化工等领

域物料输送。

分类：

(1) 按覆盖胶性能可分为：普通型、阻燃型、耐寒

型、耐磨型、耐热型、耐酸碱型、低能耗型等品种。

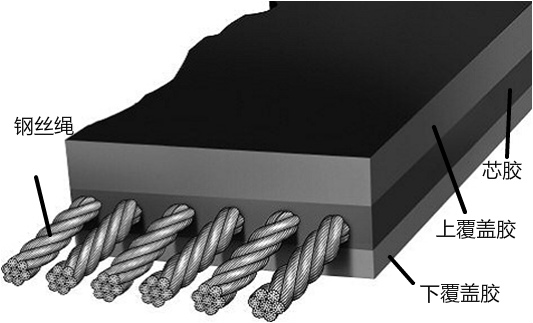

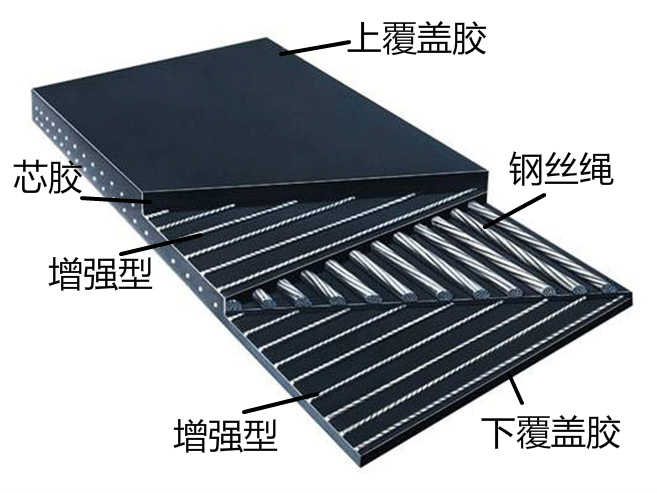

(2) 按内部结构可分为：普通结构型、横向增强型、

预埋线圈防撕裂型。

Character: High tensile strength, impact resistant, low elongation,

good troughability, flexible. Available for the material handling of

the large distance, heavy duty and high speed.

Application: Material handling of coal, mining, port, metallurgy,

power，chemical;

Cover Grade: Normal, low rolling resistant, fire-resistant, cold-

resistant, abrasion-resistant, heat-resistant, acid/aIkali-resistant

etc;

Cord Structure:K6×7+1WS; K6×19+1WS;

Internal Fabrication: Standard, cross rigid, rip check sensor;

Technical Standard: GB/T9770，DIN22131，DIN22103,AS1333,JIS

K6369.

ST系列钢丝绳芯输送带主要技术参数

Technical Data for Steel Cord Conveyor Belt

	ST630	ST800	ST1000	ST1250	ST1600	ST2000	ST2500	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400	ST6300	ST7000	ST7500
纵向拉伸强度(N/mm)Tensile Strength	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400	6300	7000	7500
钢丝绳公称直径(mm)Max Diameter of Cord	3.0	3.5	4.0	4.5	5.0	6.0	7.5	8.1	8.6	8.9	9.7	10.9	11.3	12.3	13.5	15.0
钢丝绳间距(mm)Pitch of Cord	10	10	12	12	12	12	15	15	15	15	16	17	17	18	19	21
上覆盖层厚度(mm)Top Rubber Cover Thickness	5	5	6	6	6	8	8	8	8	8	8	8.5	9	10	10	10
下覆盖层厚度(mm )Bottom Rubber Cover Thickness	5	5	6	6	6	6	6	8	8	8	8	8.5	9	10	10	10
胶带参考重量(kg/㎡)Weight	18	19.5	22.5	24	25.9	31.8	36.1	40.4	43.8	45	45.1	50.7	53.4	59.6	63.7	68.7
宽度(mm) Width	钢丝绳根数（CordNumber>
800	75	75	63	63	63	63	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	59	55	55	54	49	45
1200	113	113	94	94	94	94	76	76	77	77	71	66	66	63	59	54
1400	133	133	111	111	111	111	89	89	90	90	84	78	78	74	69	63
1600	151	151	126	126	126	126	101	101	104	104	96	90	90	85	80	72
1800		171	143	143	143	143	114	114	117	117	109	102	102	96	90	82
2000			159	159	159	159	128	128	130	130	121	113	113	107	101	91
2200						176	141	141	144	144	134	125	125	118	111	100
2400						193	155	155	157	157	146	137	137	129	121	109
2600						209	168	168	170	170	159	149	149	140	131	119
2800						230	184	184	184	184	171	161	161	151	142	129
3000						247	198	198	198	198	185	174	174	148	152	138
3200						264	211	211	211	211	198	186	186	158	162	147

*胶带重量根据覆盖胶厚度、密度变化

说明：输送带单卷长度100m-1500m,受厚度、宽度、运输、安装等条件限制，每卷长度由供需双方确定。

*Belt weight varies from different rubber cover thickness and density.

Notes： 100m-1500m Per Roll

Belt beyonds the above specification can also be made as required.

钢丝绳芯输送带

Steel Cord Conveyor Belt

建议钢丝绳芯输送带的使用输送机小滚筒直径（Min.Pulley Diameter)

* ST系列执行GB/T9770标准

*ST series are produced by GB/T9770 standard
